ARISTARCO 2126

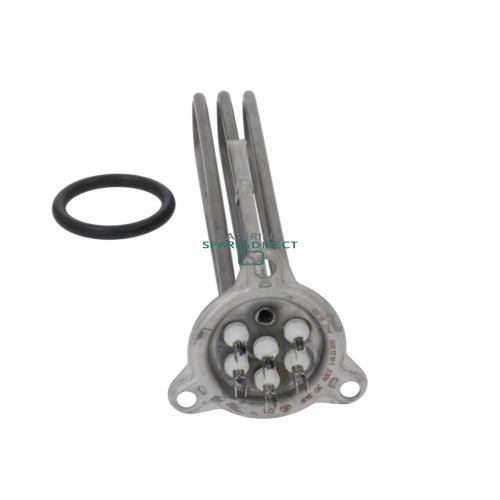

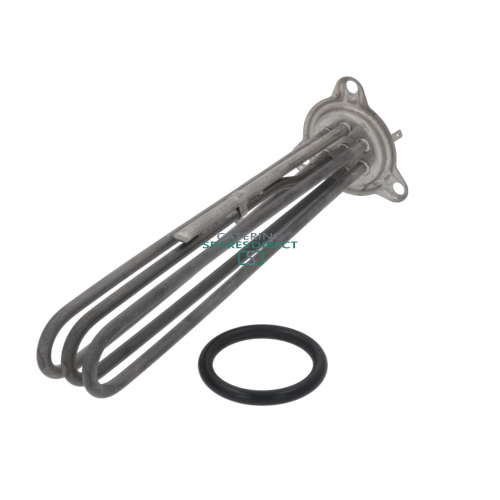

Aristarco 16572 replacement heating element 6000 watts for wash tank and boiler with gasket

power 6000 W

voltage 230 V

length 330 mm

connection F6.3

tube diameter 8,5 mm

heating circuits 3

hole distance 83 mm

mounting diameter 65 mm

hole diameter 10 mm

diameter thermostat sleeves 7 mm

number of thermostat sleeves 1

length thermostat sleeves 200 mm

position thermostat sleeve upper

Aristarco Part Reference - 2126, 16572, 12101, 2126C

Fits the following Aristarco -

AL 55.45 EM/P, AP 55.40, AP 55.40 D.A., GL 5.34 E., GL 7.40 E.M., GL5.34, GL7.38, LP 55-65, LP 55-80

AE 1000, AE 1200, AH 1000, AH 1040 BTI, AH 1040E, AH 1040E-D.A., AH 1040E-ES, AH 1040E-PRS, AH 1100, AH 1100 DGT, AH 1240 BTI, AH 800, AH 800 E, AH 800 E-D.A., AH 800 E-ES, AH 800 E-PRS, AH 800M, AL 1200 E, AL 1500 E, AP 1000, GL 1040, GL 1240, GL 8.50 E

AL 55.45, AL 55.45 E, AL 55.45 E/P, AL 55.45 EM, AS 55.40, AS 55.40 D.A., AS 55.40 DGT, AS 55.40DGT-DA, AS 55.40E, AS 55.40E-DA, AU 55-65, AU 55-65E ES, AU 55-65E PRS, AU 55-80, AU 55-80E ES, AU 55-80E PRS, AU 65-65, AU 65-65E ES, AU 65-65E PRS, AU-L 55.45, AU-L 55.45E, AU-P 55.40, AU-S 55.40, AU-S 55.40 DGT, AU-S 55.40E

LP 65-65, LP 85-65
